▶| Technical Specifications | |
|---|---|
| Max. Product Volume | 5L (Single Station) |
| Dry Cycle | 1300 pc/h |
| Output | 85 kg/h |
| Machine Weight | 10T |
| Machine Size | 4.6m×2.6m×3.5m |
| Platen Distance | 300mm-660mm |
| Mold Moving Stroke | 550mm |
| Clamping Force | 158kN |
| Screw Diameter | 70mm |
| Screw L/D Ratio | 25:1 |
| Screw Heating Power | 13.2kW |
| Heating Zones (Screw) | 3 |
| Screw Motor Power | 22kW |
| Total Power | 66.25kW |
| Max. Mold Size | 540mm×430mm |

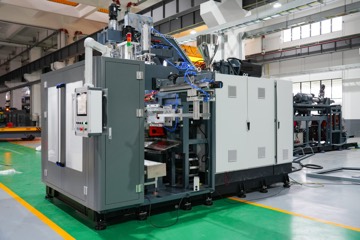

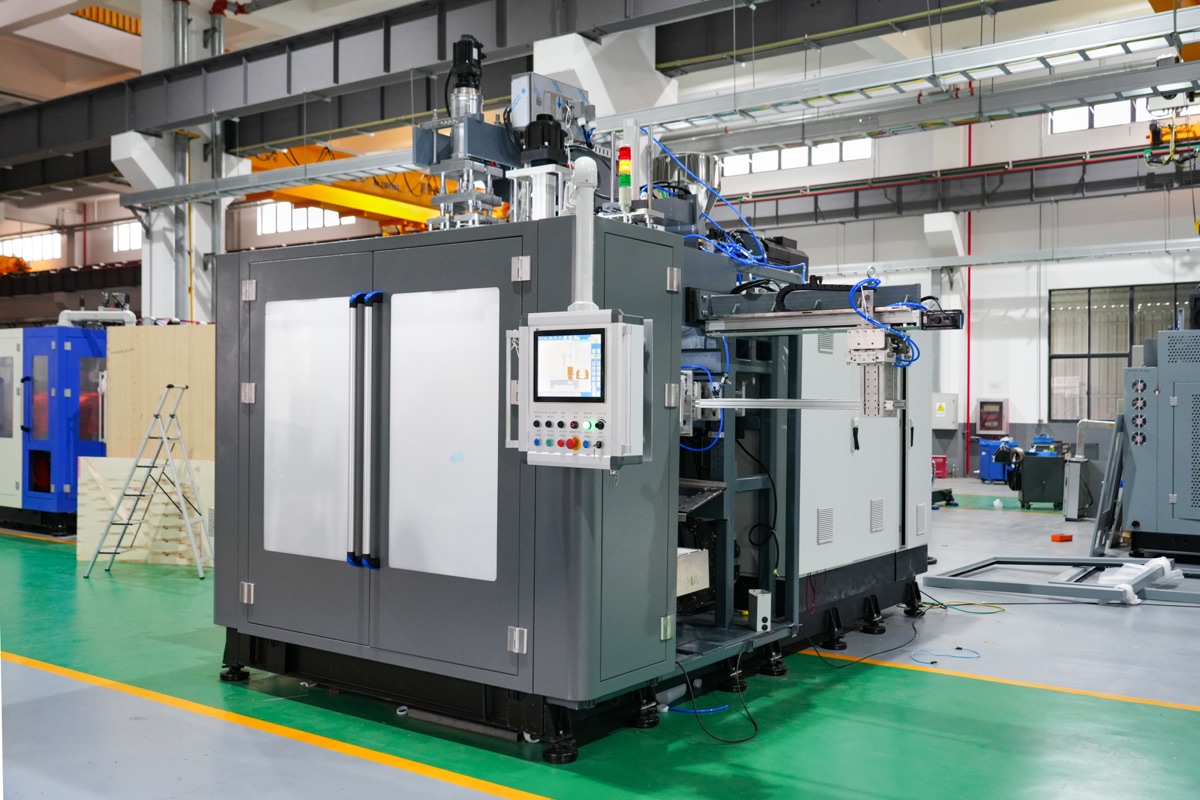

HSE-5L Extrusion Blow Molding Machine
Fully electric blow molding platform for 10mL-50L cleanroom-grade containers, built for high cleanliness, lower energy use, and intelligent production control.
This model is specifically engineered for high-standard hollow plastic products ranging from 10mL to 50L, making it an ideal solution for cleanroom production in medical, food, and wet electronic chemicals industries. The equipment employs a fully electric drive system, eliminating hydraulic components and reducing oil contamination to near-zero at the source, thereby meeting the stringent requirements of high-cleanliness production environments. Furthermore, its energy-saving design helps clients achieve a 30%-50% reduction in energy consumption while increasing production output by 10%-15%. The integrated intelligent control system also enables early warning alerts and production data storage/analysis, significantly enhancing production management efficiency and automation levels. This provides customers with a stable, clean, and efficient intelligent blow molding solution.
