Big Cross Section Panel Products
Blow molding solutions.

References requiring configuration confirmation

These imported model or configuration references are not confirmed current catalogue specifications. Contact our team for the matching equipment. Unverified numerical figures are not shown.

• TDW-350F
• HT-1500L
• TDB-1000L
• TDB-1200L

Professional testingWe have various strict testing mechanisms. For the stacking bucket, it mainly includes leak detection, stacking and drop test. Meet customer needs and ensure product qualityPersonalized customization servicecan customize products with single layer, multi-layer, multi-color and liquid level line according to different needs of customers. The liquid level line can be increased through the optional screw of liquid level line; Multi layer products can be made by selecting multiple screws, up to 6 layers can be made; Multi color products can be made by selecting multiple screwsTurnkey project planprovide all-round worry free service for customers from project planning, machine installation and production, equipment commissioning, personnel training, after-sales service, so that customers can "seamlessly" produce after getting the machine.Servo energy-saving automationThe general servo motor can save 30% of electricity; Fly edge can be used for 30%, and some products can account for 50%The most cutting-edge technology in the field of blow moldingWith a strong technical team, we ensure the quality of each machine by virtue of precise machine manufacturing process, unique technology and strict quality control process. So far, our company has won dozens of technical honors at home and abroad.Technical support and serviceWe always adhere to customer focus, always pay attention to customer needs, provide customers with perfect pre-sales, in sales and after-sales services, and are committed to providing customers with completed solutions.

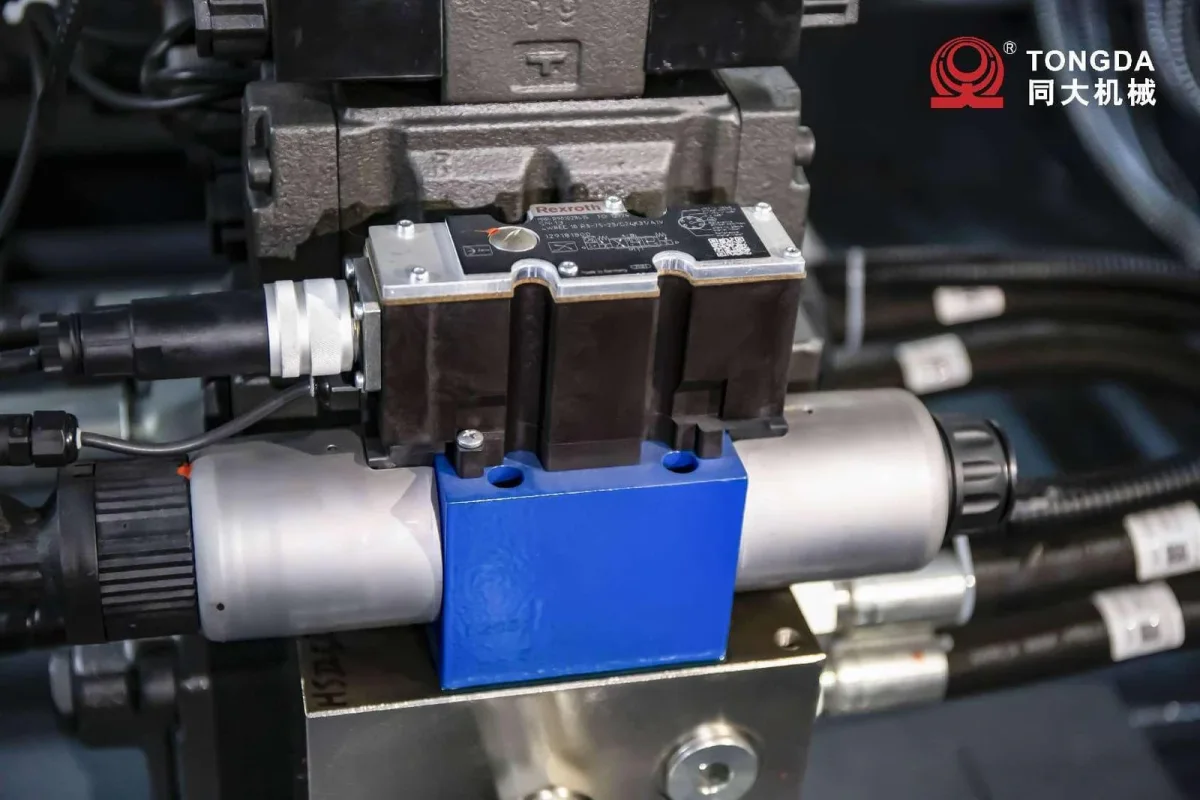

Proportional hydraulic control, equipped with imported hydraulic valve and oil pump, stable and reliable.

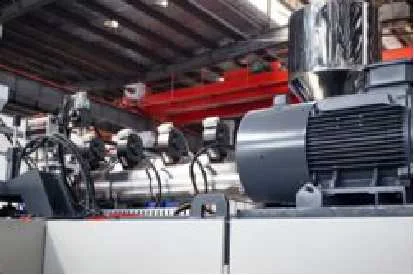

The plasticizing system adopts American S design series. Full consideration shall be given to the full plasticization of such medium molecular weight and high molecular weight polyethylene. The high efficiency plasticizing mixing screw is used to fully and evenly plasticize, improve the surface quality of the product, and effectively prevent the temperature rise of the screw. The diameter of 90MM screw can reach 130Kg/h. Equipped with energy-saving device of frequency converter, the average plasticizing capacity is 3.97Kg per kilowatt hour. Its energy consumption ratio is second to none among similar products.

Mitsubishi PLC computer interface (Chinese and English) control All process setting, change, retrieval, monitoring, fault diagnosis and other functions are realized on the touch screen. The working principle of pointless contact makes the components durable.

Independent single (large) oil cylinder feeding ensures the concentricity of feeding and absolutely avoids the asynchronous phenomenon of double oil cylinders. Tongda’s unique technology 10 section pressure wall thickness control function reduces the difference between the upper and lower width of the blank due to vertical extension, and improves the uniformity of the product wall thickness.
