HT II-2L 0.1-2L Blow Molding Machine for Bottles

Name: HT-II-2L Extrusion Blow Molding Machine
Brand: TONGDA
SKU: HT-II-2L
Rating: 4.8 (38 reviews)

Technical Specifications
Max. Product Volume	2L (Double Station)
Dry Cycle	900×2 pc/h
Output	60 kg/h
Machine Weight	3.9T
Machine Size	3.3m×2.2m×2.6m
Platen Distance	138mm-368mm
Mold Moving Stroke	370mm
Clamping Force	44kN
Screw Diameter	60mm
Screw L/D Ratio	25:1
Screw Heating Power	11.2kW
Heating Zones (Screw)	3
Screw Motor Power	15kW
Total Power	39kW
Max. Mold Size	360mm×320mm

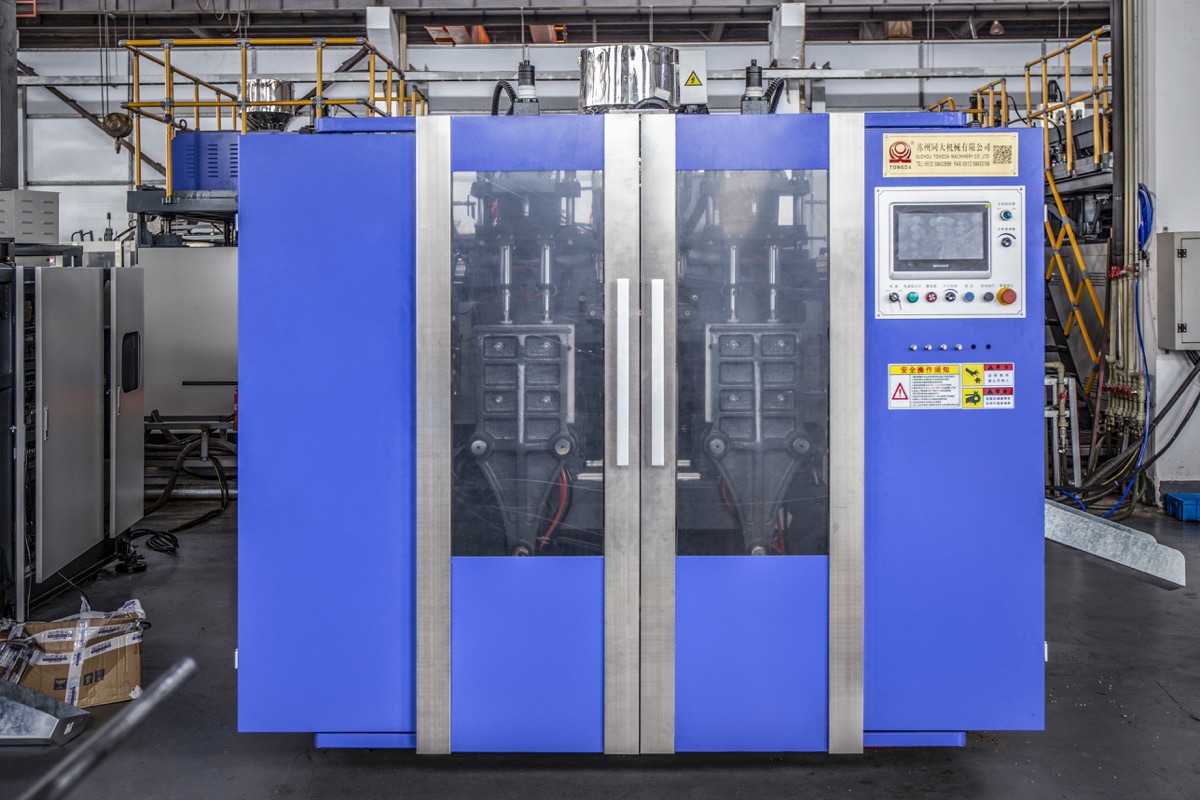

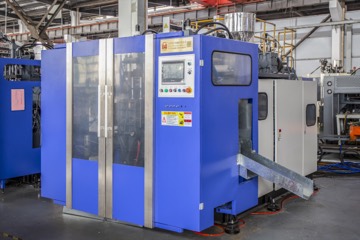

HT II-2L Extrusion Blow Molding Machine

The HT series represents a classic model that has undergone approximately two decades of market validation.

0.1–2LHDPE / PPDouble StationFull-Automatic

Specifically designed for hollow plastic products in various civil and industrial chemical applications, it is renowned for exceptional stability and minimal product weight variation, ensuring consistent and reliable mass production. Featuring a unibody structure, the machine enables simplified installation and rapid production deployment, allowing customers to respond promptly to market demands. With its mature technology and cost-effective investment, the HT series serves as an ideal choice for those pursuing stable returns and efficient manufacturing capabilities.

Request a Quotation

Response within 24 hours. Price includes CIF shipping options.

Interested Model

Name *

Company

Country

Email *

Phone / WhatsApp *

What's your target container size?

Any specific requirements? *

✅

Inquiry Received!

We'll respond within 24 hours with CIF price and estimated delivery.

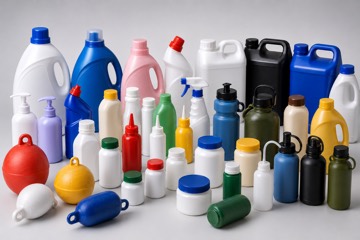

Applications

What Can You Produce

The HT II-2L Extrusion Blow Molding Machine handles HDPE and PP materials, suitable for the following applications:

🧴

Cosmetic Bottles

Small cosmetic and skincare bottles. Sample runs for new product development.

💊

Pharmaceutical

Sample production for pharma containers. Small batch OTC bottle runs.

🧪

Laboratory

Lab-scale container production. Ideal for research institutions.

🛢️

Lubricant Samples

Engine oil sample bottles for distributors. Small batch production.

🍯

Food Grade

Small edible oil bottles, honey containers, sauce bottles.

🏠

Household Chemicals

Cleaning product bottles, detergent packaging for small businesses.

Why HT Series

Built for Volume Production

Not a demo machine — this is production equipment running 24/7 at client sites. Here's what separates the HT II-2L Extrusion Blow Molding Machine from cheaper alternatives:

⚙️

Servo-driven extrusion

Precise wall thickness control across the entire container. Reduces material waste by 8-12% vs hydraulic machines.

🛡️

Stable parison control

Optimized extrusion and die-head design helps maintain even wall thickness for small bottles and containers.

🔧

Automated de-flashing

No manual trimming required. Integrated CNC trimming head reduces labor cost and flash reuse rate is higher.

📉

Energy saving mode

Idle power reduction when not extruding. ~15% lower energy cost vs standard machines in the same class.

What's Included

✓ Main machine with 1-year warranty
✓ 1 set of product mold matched to the confirmed container design
✓ Spare parts kit (screws, heaters, thermocouples)
✓ Tool box and maintenance manual
✓ Operator training (on-site or video)
– Extra molds (order separately)
– Installation and commissioning (optional)

Lead time:60-90 days

Payment:30% deposit, 70% before shipment

FOB:Shanghai / Ningbo

Certifications & Compliance

Documents Buyers Need Before Import

Tongda provides qualification materials covering CE compliance, ISO 9001 quality management, industry recognition, and patent documentation.

CE Machinery Directive Attestation of Conformity certificate

CE Compliance

Machinery Directive conformity for extrusion blow molding machine export and market access.

ISO 9001 quality management system certificate

ISO 9001 System

Certified quality management system covering R&D, production, inspection, and quality management.

China Plastics Machinery Industry Association vice president unit certificate

Industry Recognition

Vice President Unit of the China Plastics Machinery Industry Association.

Patent Certificates

100+ patents across equipment structure, process, control, and application technologies.

FAQ

Questions Before You Choose HT II-2L

Key details about factory visits, machine inspection, delivery confirmation, and after-sales support.

Can I visit Tongda factory before ordering the HT II-2L machine?

Yes. Customers are welcome to visit Tongda factory before placing an order. A factory visit helps you check our manufacturing capability, R&D team, after-sales team, production process, and real equipment quality.

How does Tongda help ensure safe payment and on-time delivery?

Tongda can support agreed payment methods such as Alibaba Trade Assurance or letter of credit when applicable. Customers can also confirm delivery schedule, production progress, and bank account details during project communication or factory visits.

How does Tongda control the quality of the HT II-2L blow molding machine?

Tongda has specialized in blow molding machinery for more than 20 years. Key parts are inspected before assembly, each machine is assembled by experienced technicians, and the completed production line is connected and tested before delivery.

Will the HT II-2L machine be tested before shipment?

Yes. After production is completed, Tongda debugs the machine, runs production tests, and can provide photos or videos for customer confirmation. The machine is then packed with standard export packaging for shipment.

Does Tongda provide installation, training, and after-sales support?

Yes. Tongda can arrange engineers for installation and training according to the customer's project requirements. Sales managers, engineers, and after-sales service managers work together to follow the project online and offline.
