Customer requirement
The customer was expanding from film blowing and woven bag production into hollow plastic packaging. The target products were 20L and 30L chemical drums for formic acid packaging and storage.
Because the customer was new to hollow blow molding, the project needed a complete solution covering product quality, production stability, energy cost, and future factory planning.
- Target products: 20L and 30L chemical drums.
- Annual output target: about 400,000 pieces per product type.
- Application: formic acid packaging with specific gravity around 1.2-1.3.
- Quality requirement: products must meet strict UN certification standards.
HS-30L machine solution
Tongda recommended the HS-30L electro-hydraulic hybrid extrusion blow molding machine. The machine combines a 30-ton clamping system, servo hydraulic control, precise parison control, and automated trimming support for chemical drum production.

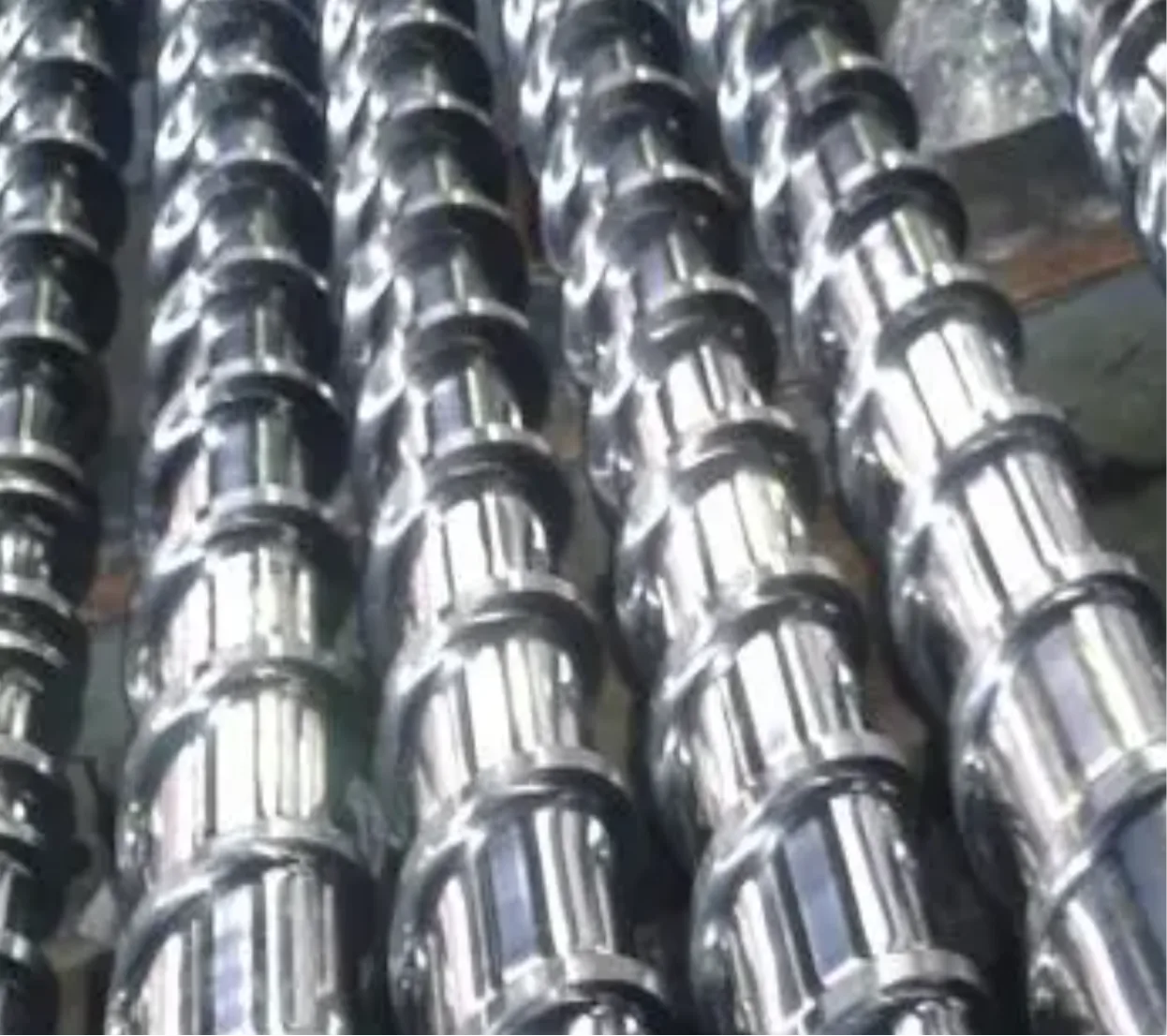

The 80mm, 30:1 high-efficiency plasticizing screw improves mixing and plasticizing performance, while the patented composite flow-channel die head helps keep wall thickness more even and product surfaces smoother.
- Machine model: HS-30L hybrid extrusion blow molding machine.

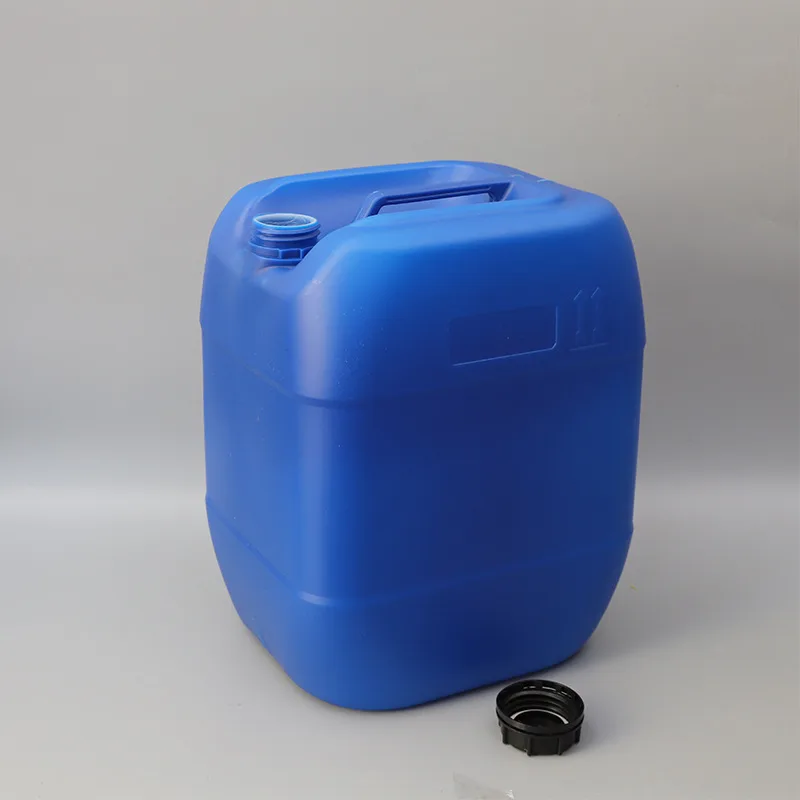

- Typical product data: 21.8L full-mouth volume and about 1.55kg product weight.
- Estimated daily output: about 1,500 pieces under the project calculation.
- Energy reference from the case: about RMB 0.86 electricity cost per drum.
Automated production support
The project plan also included material handling, conveying, cooling and shaping, and online leak testing. This helps the customer build a more stable production line instead of relying only on a single machine.
For chemical packaging, the automated leak test is especially important because every drum must keep reliable sealing performance before delivery.
- Automatic dosing and conveying for raw material, masterbatch, and regrind material.
- Conveyor and cooling support for dimensional stability and continuous production.
- Online leak testing for 100% sealing inspection and automatic rejection of defective products.
- Complete line planning to support new factory setup and future capacity expansion.
